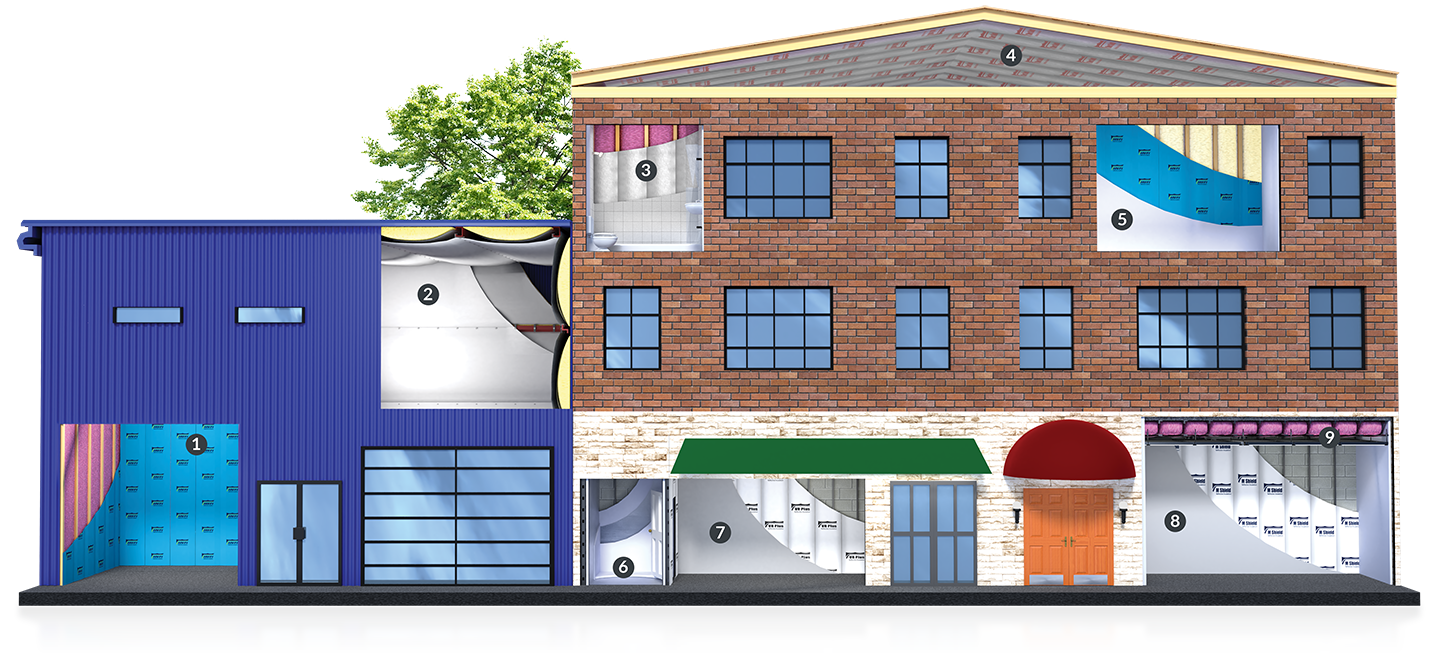

COMMERCIAL & METAL BUILDING APPLICATIONS
REFLECTIVE INSULATION & RADIANT BARRIERS
-
1
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall shown in metal building office with HY-Fi® installed over 2" of fiberglass in 2x4 framing; alternative is HY-Fi® installed over 2" of closed cell spray foam; works with a minimum 1-1/2" enclosed cavity air space to add R7 to the assembly.
-
2
RetroShield System® Metal Building Insulation for Retrofit & New Construction - Metal Building Insulation shown as retrofit with RetroShield System® installed over existing insulation on roof and wall purlins, adds R16.
-
3
SkyFlex VT™ Flexible Sheet Air Barrier - Vapor Transmitting - SkyFlex VT™ shown installed in wet room/bathroom behind shower over fiberglass insulation in 2x4 framing.
-
4
Silver Shield™ Attic Radiant Barrier - Premium Multi-Layer - Silver Shield™ shown installed on bottom of top cord attic trusses.
-
5
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall shown with HY-Fi® installed over 2" of closed cell spray foam in 2x4 framing; works with a minimum 1-1/2" enclosed cavity air space to add R7 to assembly.
-
6
RF Shield™ SCIF Barrier for Sensitive Compartmented Information Facilities - SCIF system shown with RF Shield™ installed between two layers of drywall on the walls, ceiling and floor.
-
7
VR Plus Shield™ Reflective Insulation- Multi-layer for Masonry Walls - Walls shown with VR Plus Shield™ installed on masonry block with 1-1/2" furring, adds R7.
-
8
M-Shield® Reflective Insulation for Masonry Wall - Paperless for Mold Sensitive Projects - Walls shown with M-Shield® installed on masonry block with 1-5/8" metal framing, adds R5.
-
9
FSK Shield™ Class A Facing - Vapor Retarder - Plenum Ceiling system shown with FSK Shield™ attached to floor joists under secured fiberglass batt.

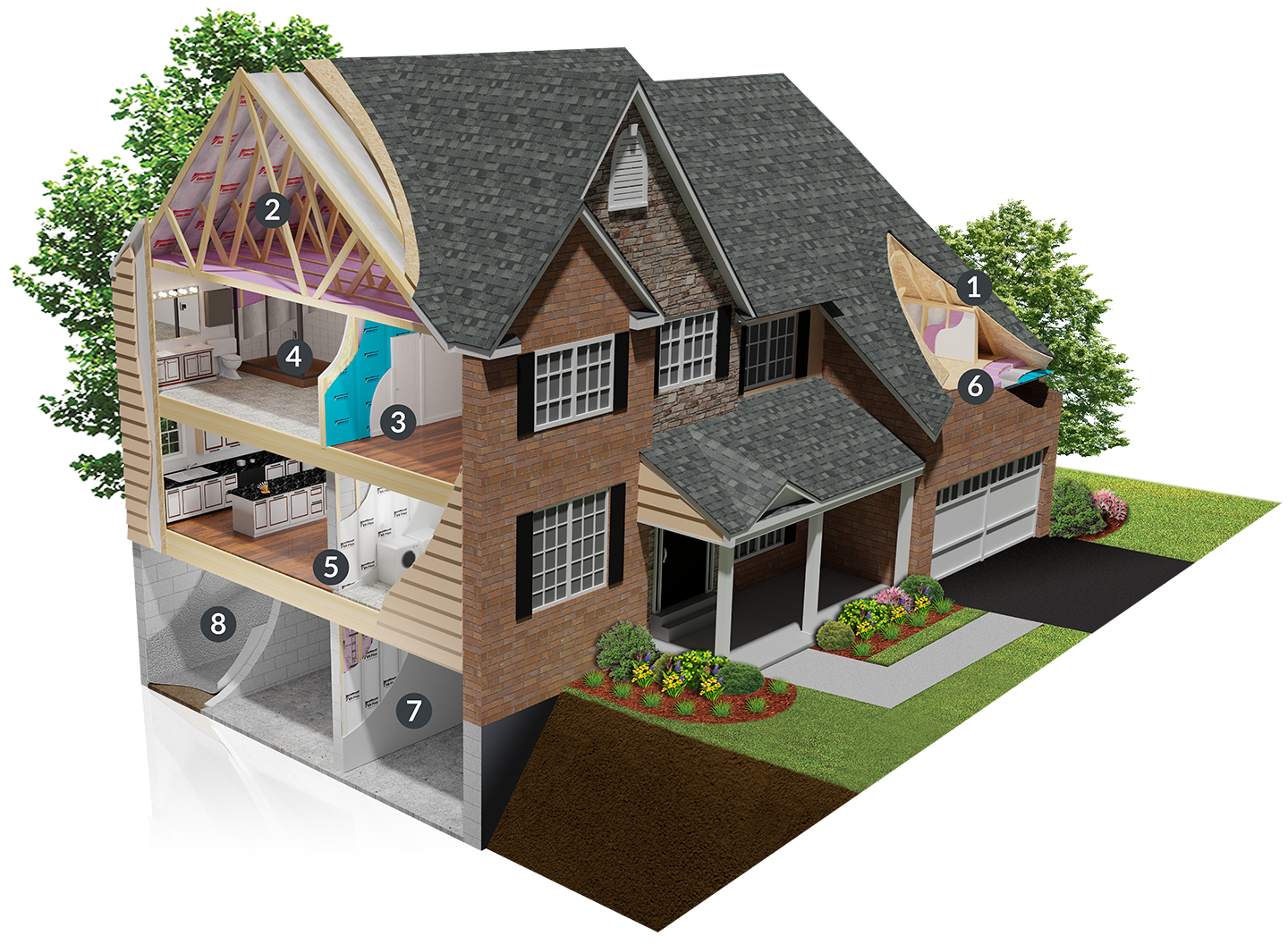

RESIDENTIAL APPLICATIONS
REFLECTIVE INSULATION & RADIANT BARRIERS
-
1
SkyFlex VT™ Flexible Sheet Air Barrier - Vapor Transmitting - Attic Knee Wall shown with SkyFlex VT™ and R19 fiberglass batt installed in bonus room above the garage.
-
2
Silver Shield™ Attic Radiant Barrier - Attic Radiant Barrier shown with Silver Shield™ installed directly on bottom of top cord of roof trusses.
-
3
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall System shown with HY-Fi® installed over 2" of closed cell spray foam in 2x4 framing, works with minimum 1-1/2" enclosed cavity air space to add R7 to the assembly.
-
4

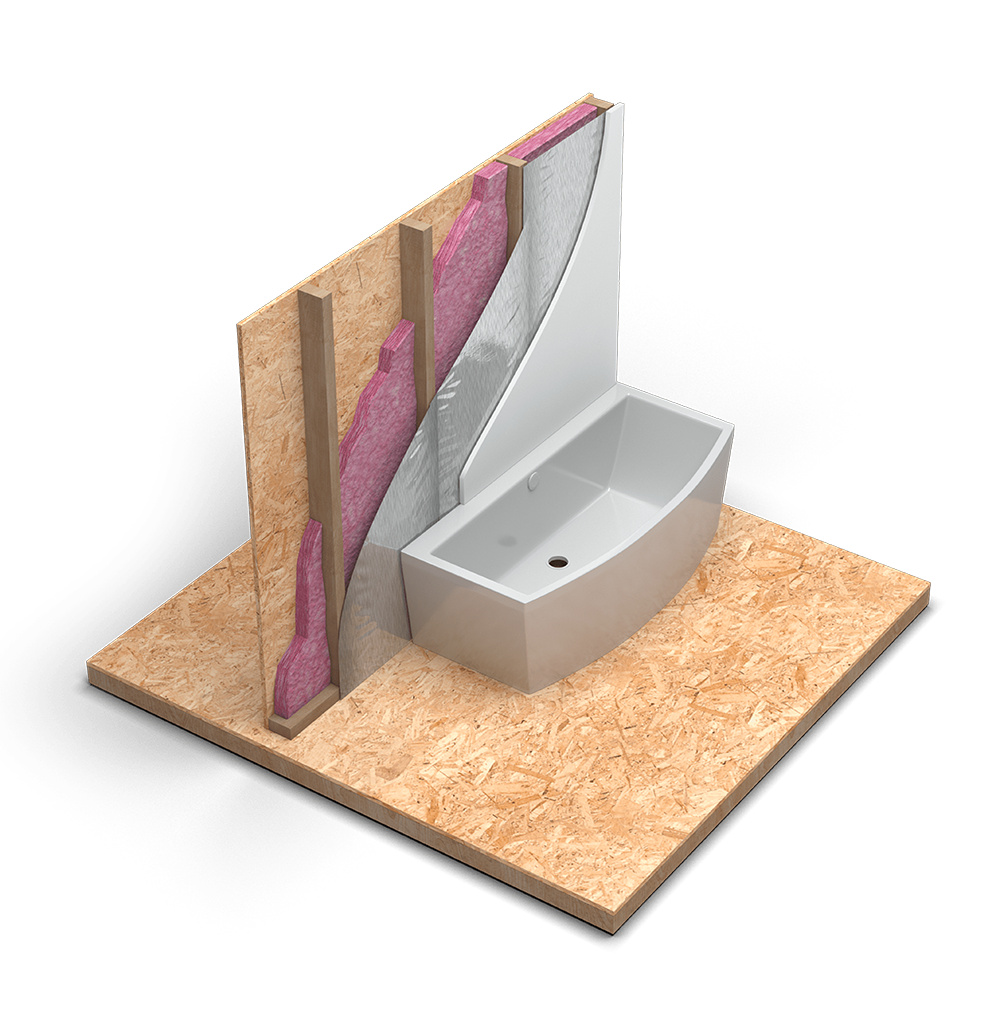

SkyFlex™ Flexible Sheet Air Barrier - Class I Vapor Retarder - Bathroom shown with SkyFlex™ installed behind shower tile.
-
5
VR Plus Shield™ Masonry Wall Reflective Insulation - Walls shown with VR Plus Shield™ installed on masonry block with 1-1/2" furring.
-
6
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Ceiling shown with HY-Fi® installed over R-19 fiberglass batt on the face of ceiling beam cavities, works with minimum 1-1/2" furring enclosed cavity air space to add R7 to the assembly. Basement Floor.
-
7
VR Plus Shield™ Masonry Wall Reflective Insulation - Basement wall assembly shown with 1/2" foam board (R3) installed on masonry block combined with VR Plus Shield™ attached to 1-1/2" (R7).
-
8
RBI Shield™ Multi-Purpose Reflective Bubble Insulation - Sealed Crawl space shown with RBI Shield™ installed on walls, reflective side up, joints and penetrations sealed with tape and mastic.
Silver Shield™
Compliance And Approvals
Meeting the Mark: Code and Compliances
- Meets or exceeds ASTM C1313
- Meets International Building, Residential and Energy Codes.
- Meets Florida Building, Residential and Energy Conversation Codes.
- IAPMO Evaluation Report number 0291
- DOE Supported Performance and Results for Radiant Barriers (RB)
- Florida Solar Energy Center Supported Performance and Results for RBs
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
Radiant Shield
Compliance And Approvals
Meeting Industry Standards: Code and Compliance Information for Radiant Shield
- ASTM C-1313, STANDARD SPECIFICATION FOR RADIANT BARRIERS
- FLORIDA BUILDING CODE
- INTERNATIONAL BUILDING CODE
- DOE Supported Performance and Results for Radiant Barriers (RB)
- Florida Solar Energy Center Supported Performance and Results for RBs
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
HY-Fi®
Compliance And Approvals
Ensuring Code Compliance with HY-Fi Insulation
- Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
- Meets International Building, Residential and Energy Codes.
- Meets Florida Building, Residential and Energy Conversation Codes.
- IAPMO Evaluation Report number 0358
VR Plus Shield™
Compliance And Approvals
Code-Compliant Confidence with VR Plus Shield
- Meets ASTM C-1244 Standard Specification for Reflective Insulation
- Meets International & Florida Building & Energy Code Requirements
- See IAPMO ES Report Number 0266.
- Meets ASTM C 1224, Reflective Insulation
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
M-Shield™
Compliance And Approvals
Meeting the Standards: M-Shields ASTM Certification and Zero Mold Growth
- Meets ASTM C-1224-03, Standard Specification of Reflective Insulation
- Meets National/Florida Building and Energy Code Requirements
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
AA2 Vapor Shield™
Compliance And Approvals
Code & Compliances: Ensuring AA2 Vapor Shield Meets and Exceeds Industry Standards
- Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
- Meets International Building, Residential and Energy Codes.
- Meets Florida Building, Residential and Energy Conversation Codes.
- IAPMO Evaluation Report number 0291
RetroShield®
Compliance And Approvals
Meeting and Exceeding Codes and Compliances for Metal Buildings
- Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
- IAPMO Evaluation Report number 0291
FSK Shield™
Compliance And Approvals
Trust in FSK Shields Adherence to Safety Codes and Compliances
- Meets ASTM E-84
RF Shield
Compliance And Approvals
Meet and Exceed Stringent Military Standards for Secure Environments
- Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
- Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
- Meets or exceeds NSA minimum requirements with RF Attenuation
- Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5
